Raw Notes #

This is a temporary page containing raw, unedited notes on this subject. This page and the information here is incomplete, and may be inaccurate.

  • I use wood veneer for my top sheets, wetted out both sides with epoxy during layup.
  • Standard “raw” wood veneer, i.e., not paper-backed. Typical thickness is around 0.026" or so.
  • I cut and join different woods, usually with a simple stripe down the center. It’s easy to do and looks nice, and lets you combine a few different woods together.
  • Veneer is joined with standard veneer tape on the underside. I wet this with epoxy carefully during layup and it stays inside the board. It’s so thin it just doesn’t matter.
  • I’ve used some curved forms to cut long arcs in the veneer, and joined those. This was a pain in the ass though, fair warning. Cutting and joining thin veneer what doesn’t lay flat well is quite hard.
  • Try to use the flattest veneer you can find if you’re joining it. It can be difficult to end up with a straight joint with very wavy, warped veneer.
  • A long time ago I used pre-printed top sheets from Creative Edge Graphics in WA. These were PBT.
  • I’ve also used clear top sheets. Some Duravision IIRC, and something else I need to look up. These are nice because you can see your top layer of fibers, core alignment, nose/tail spacer alignment, etc. You can also see if there are any dry spots due to poor wet out, voids, air bubbles, etc.
  • Mark center lines on the edges of the topsheet so you can get it straight during layup. These marks match centering marks I have on the cassette.
  • Note how veneer colors change with pressing, and teach how I made my sample cards.
    • Old FB post: When I use wood veneer for my snowboard top sheets it always darkens. It’s the epoxy and heat used during pressing. Since I got some new veneer I decided to make a bunch of test cards so I could see exactly what I’m working with. 10 different kinds of wood pressed with epoxy and fiberglass as if done for a snowboard, with white card stock glued to the backs for labels.

Misc Veneer Pics #

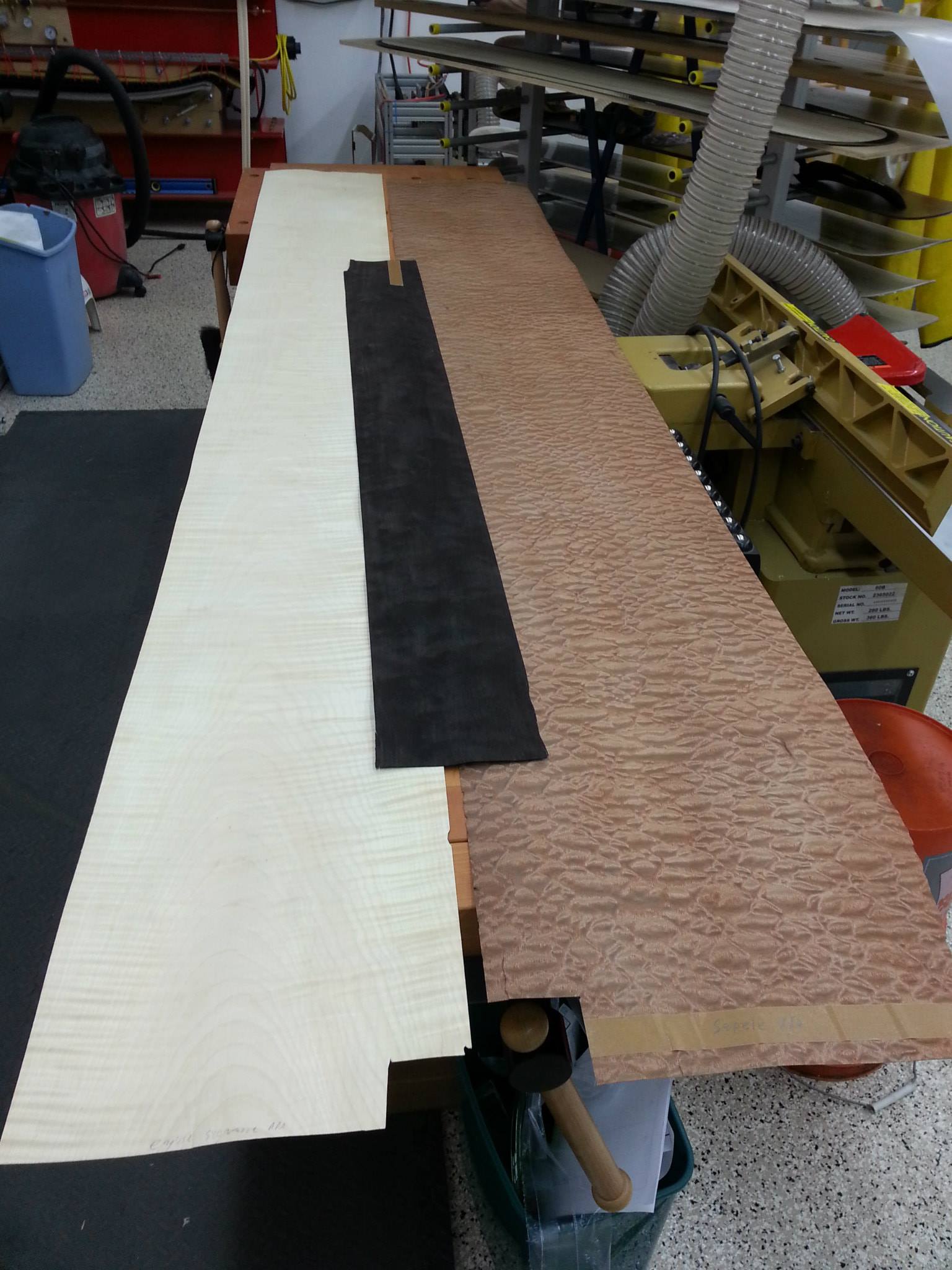

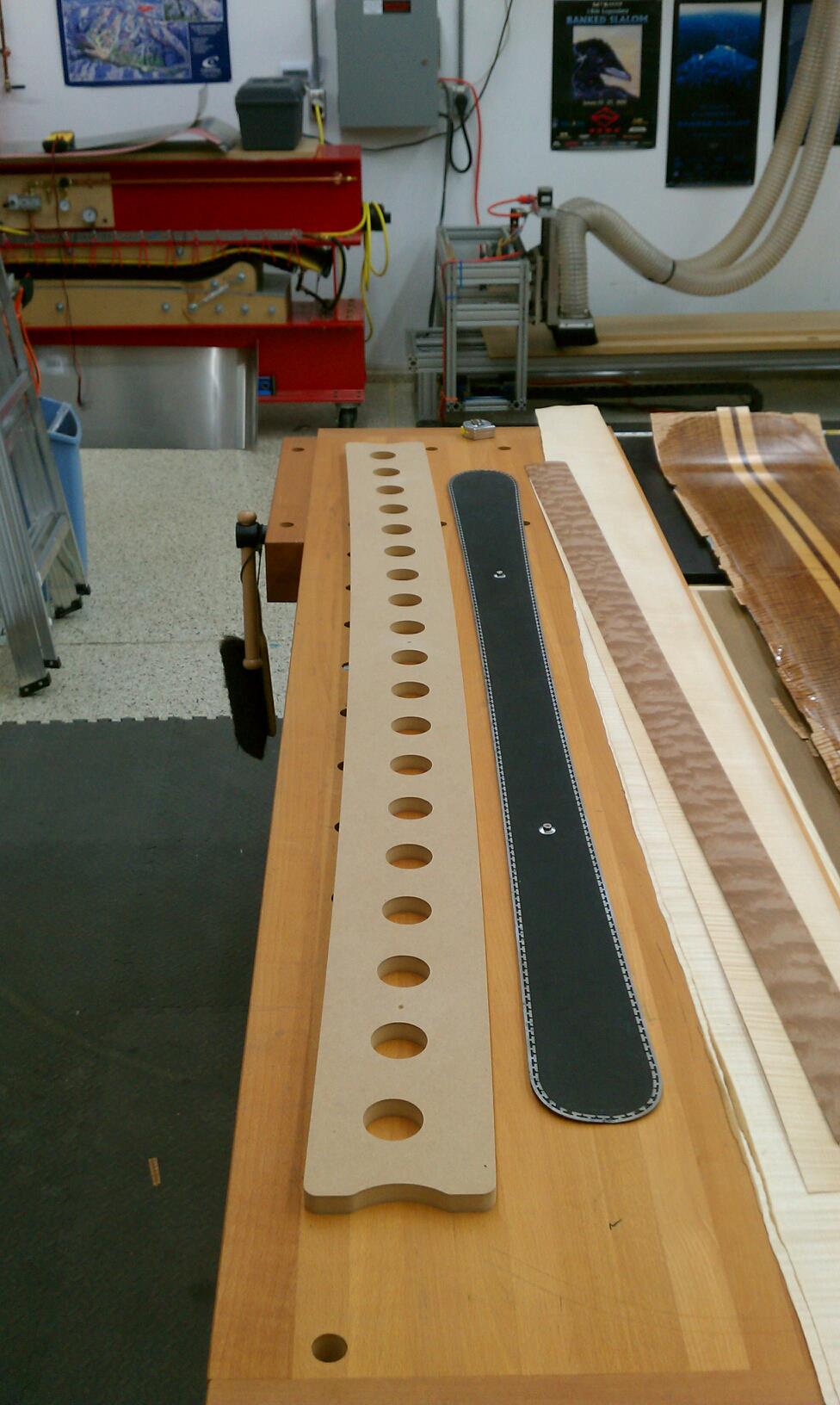

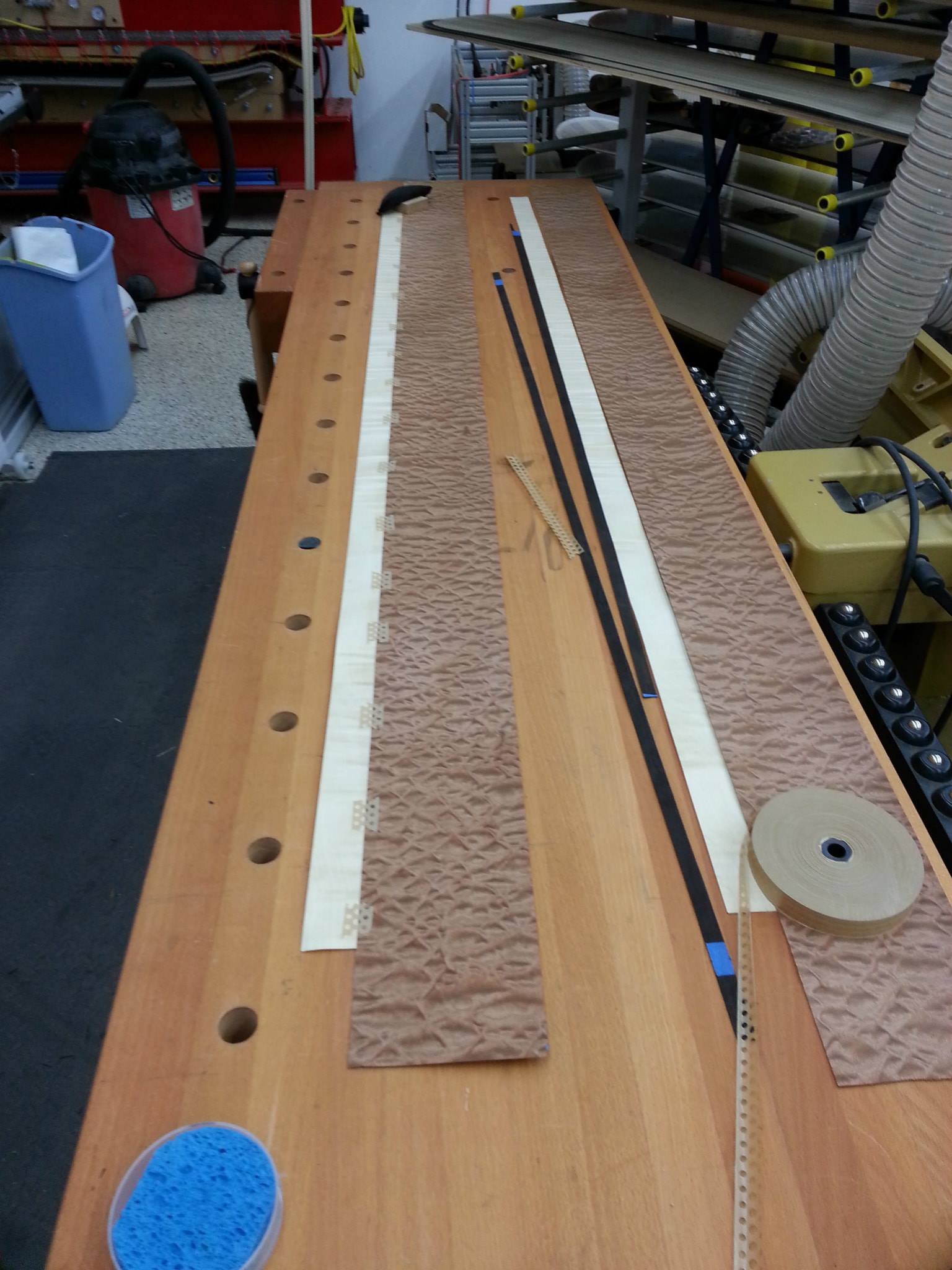

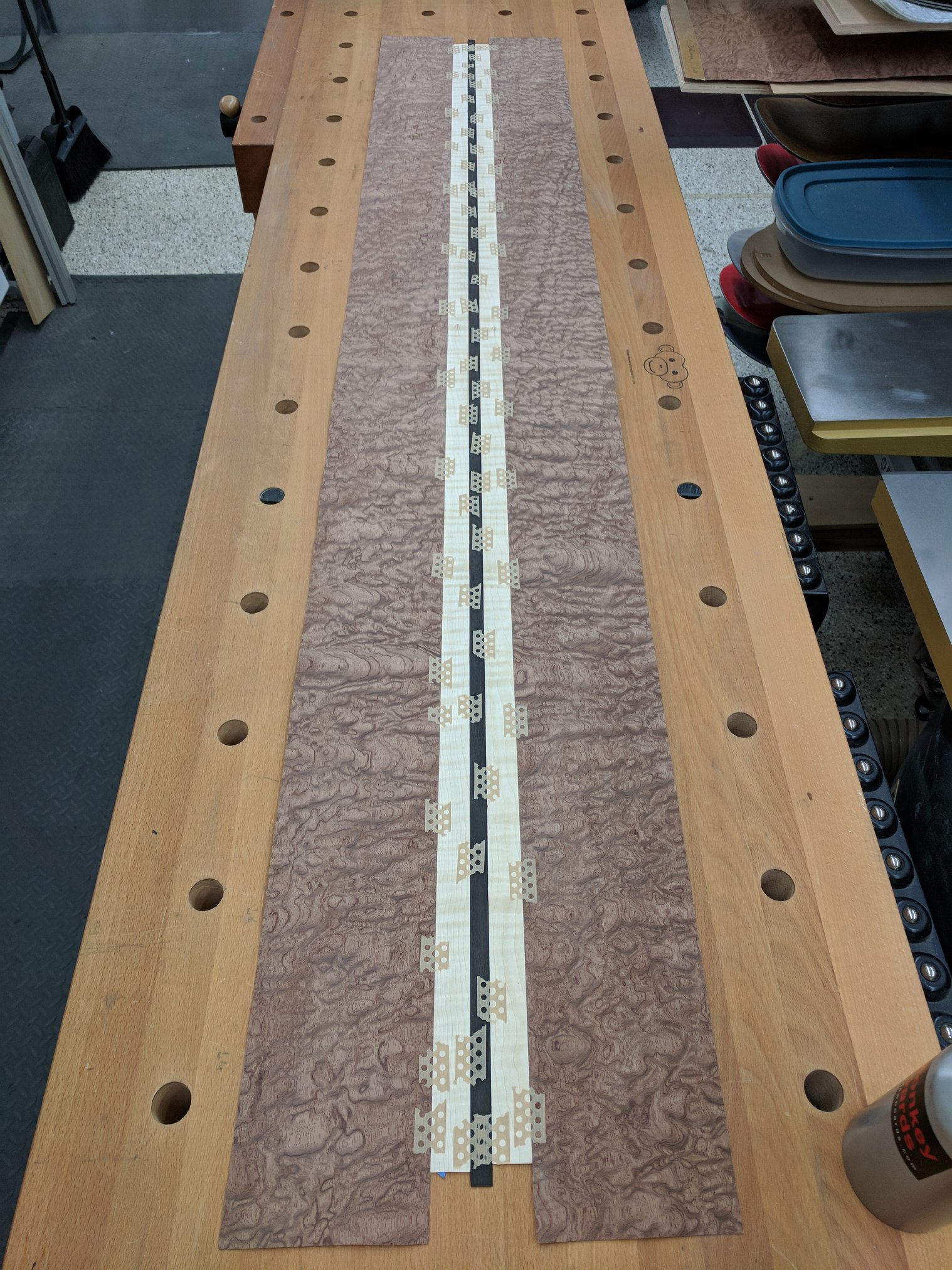

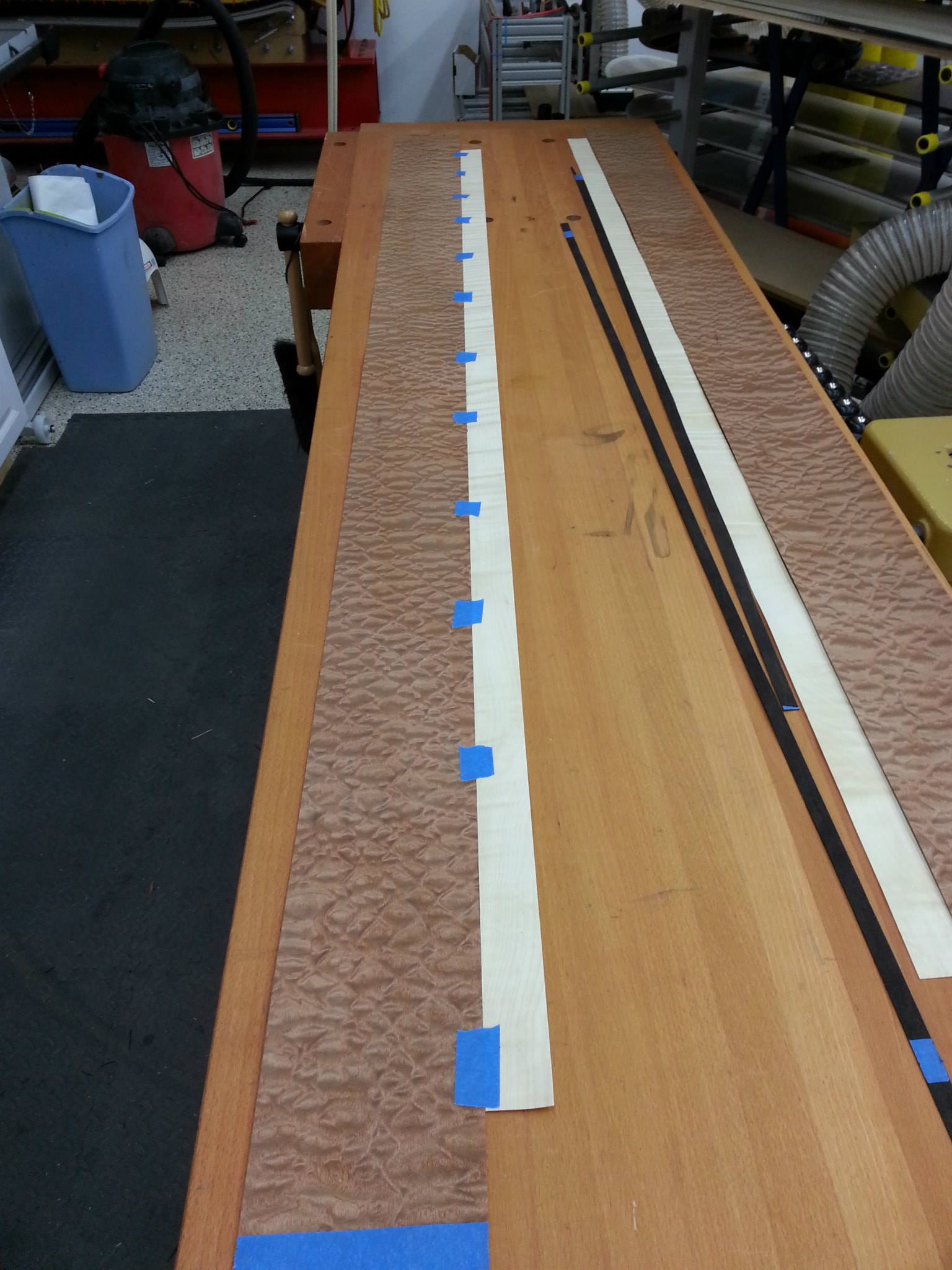

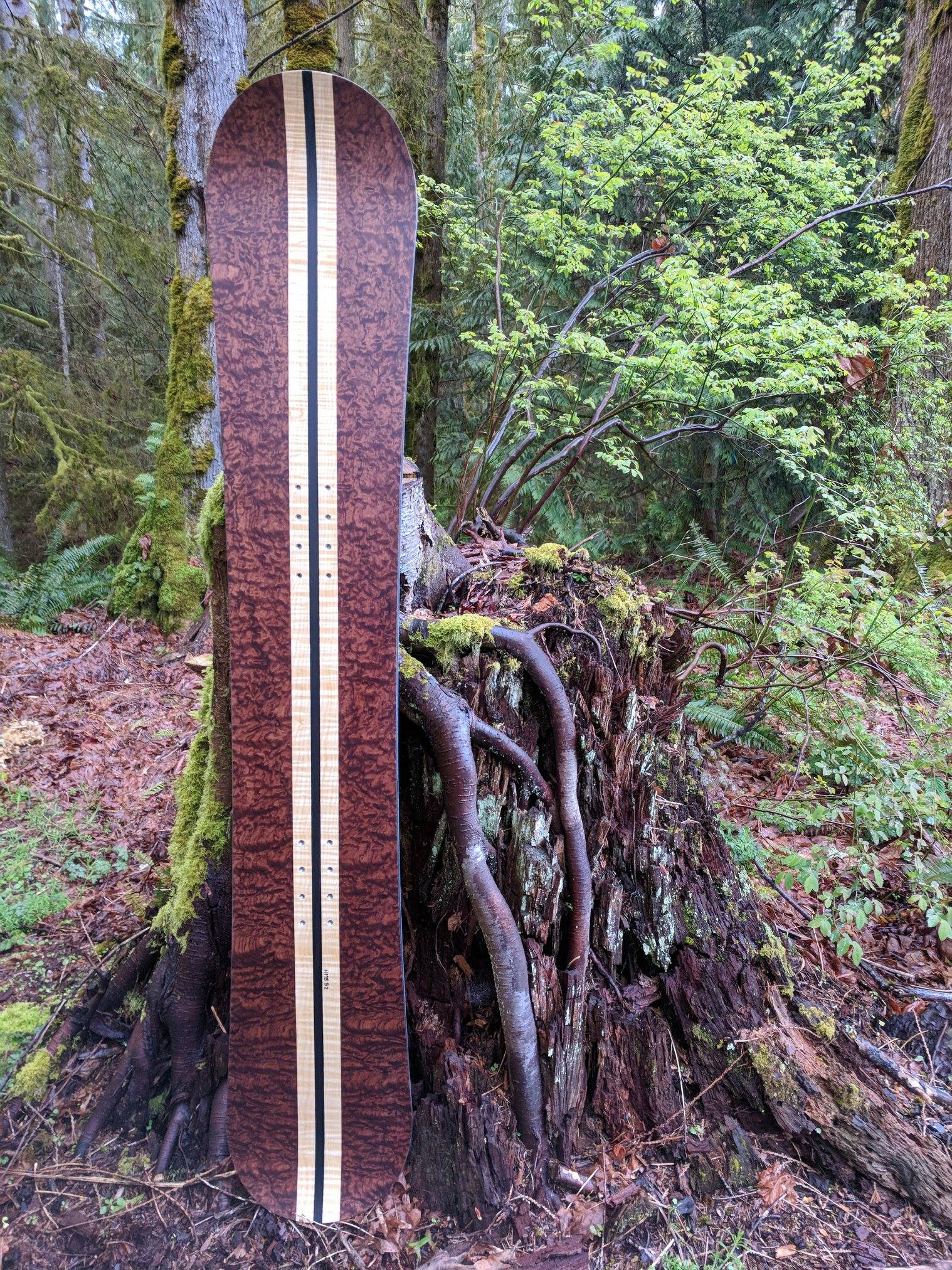

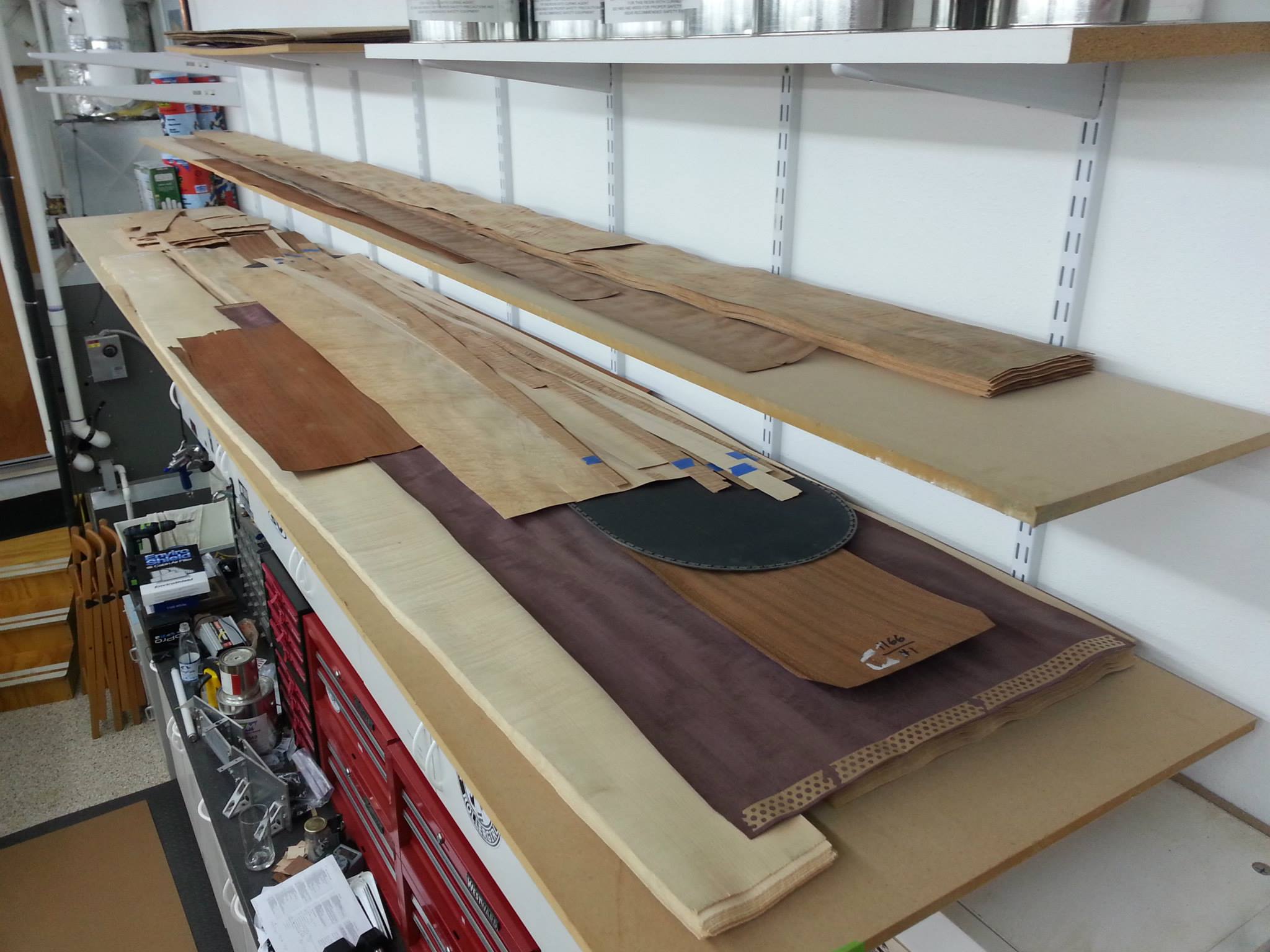

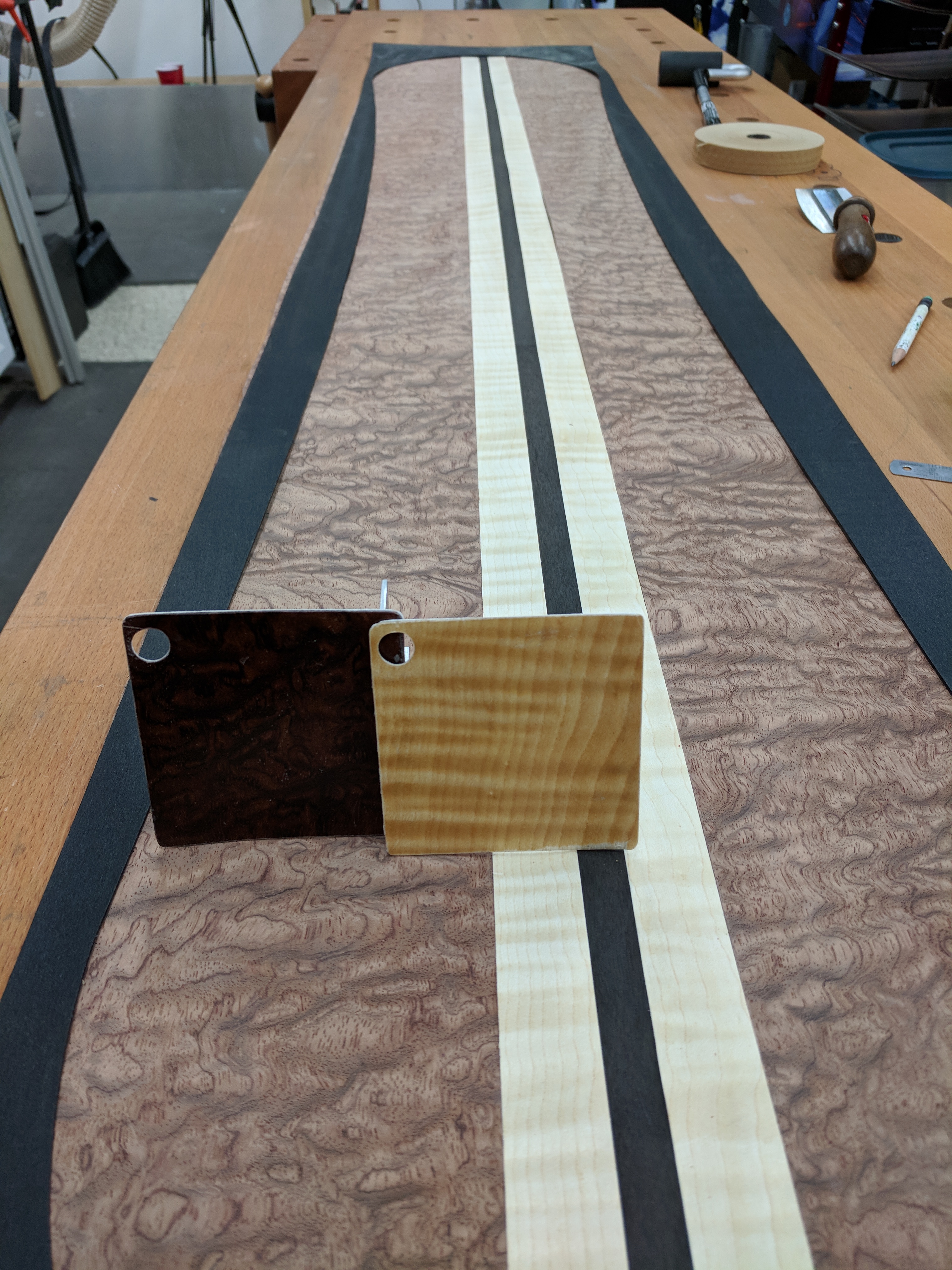

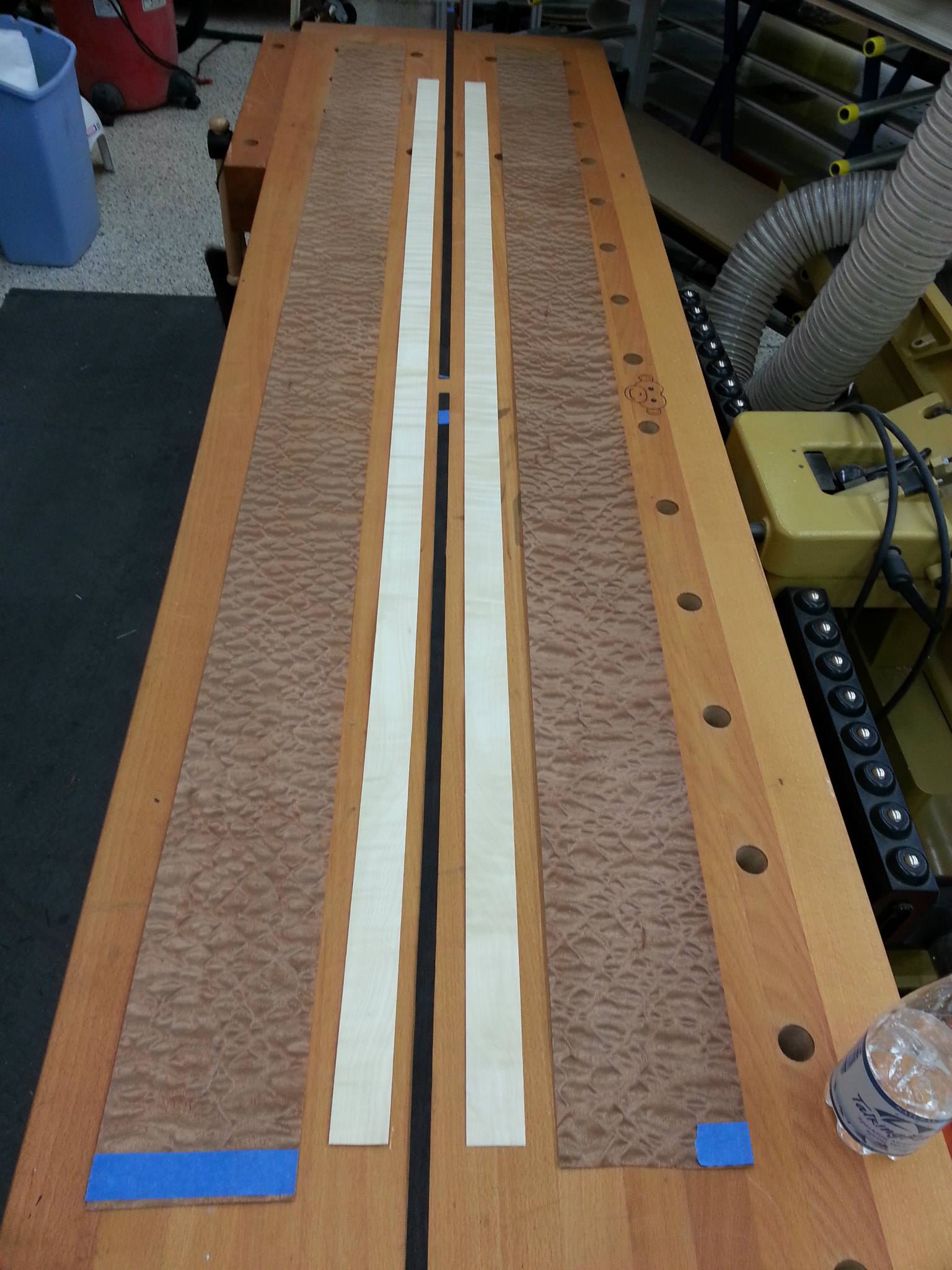

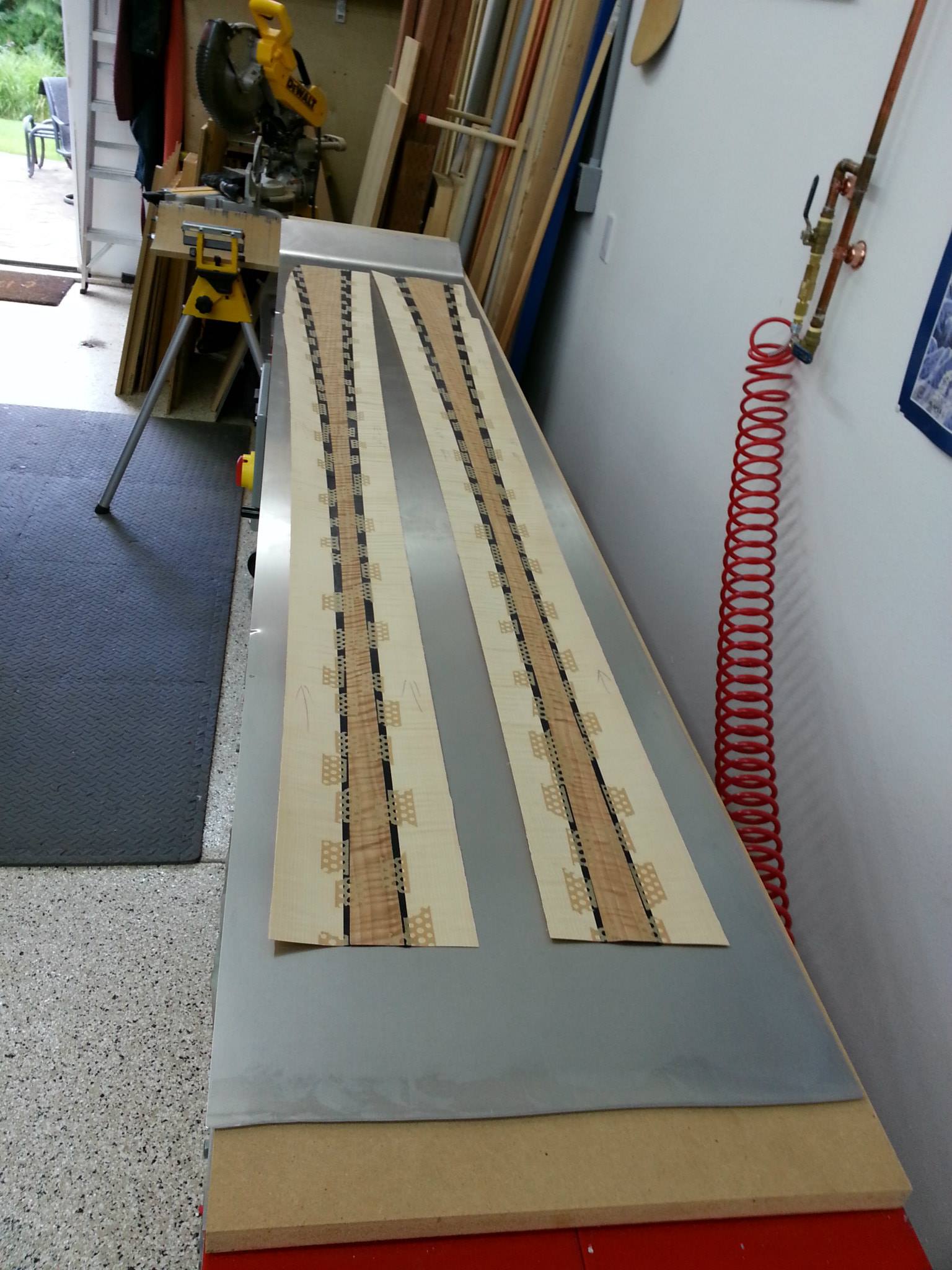

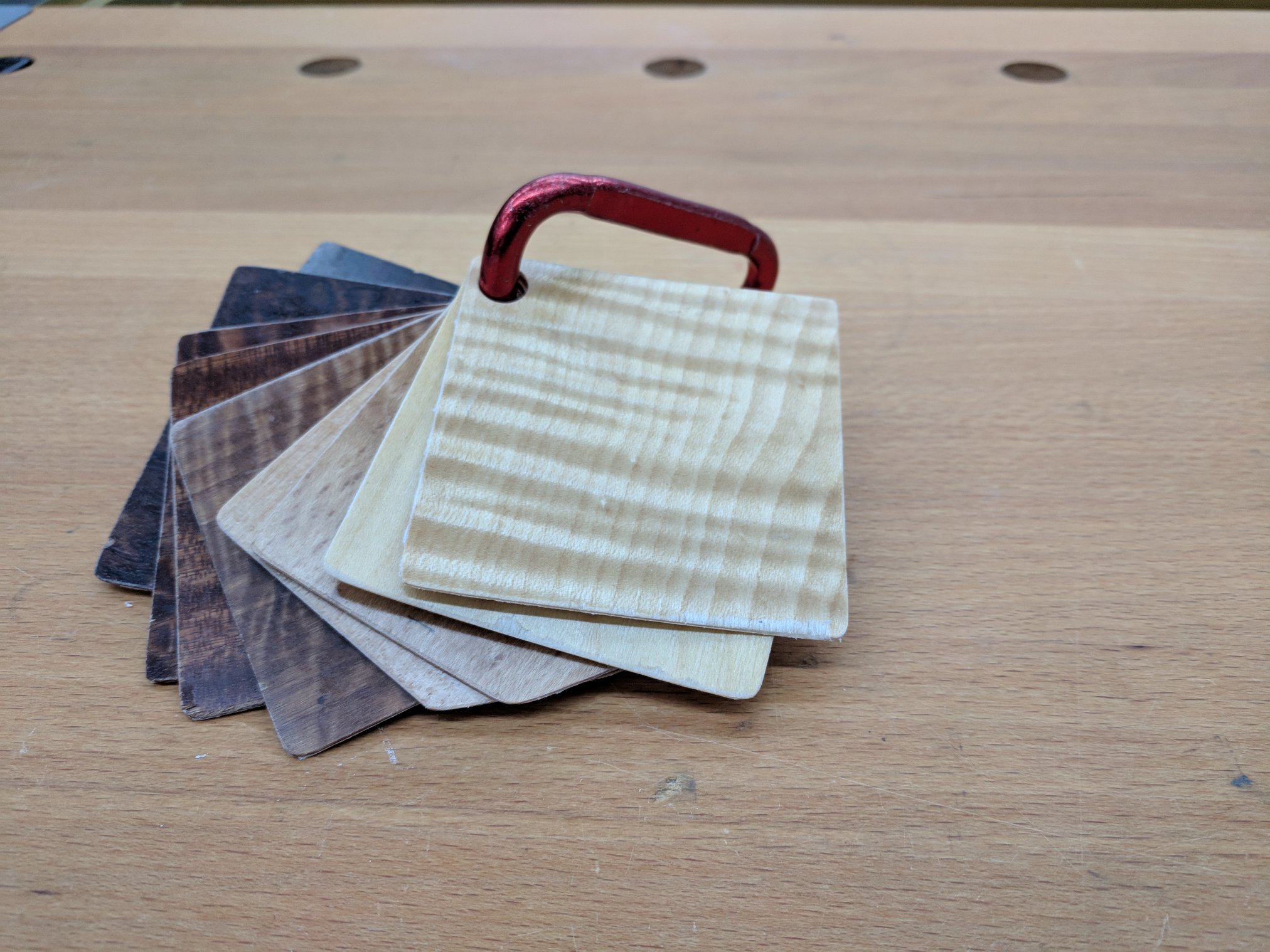

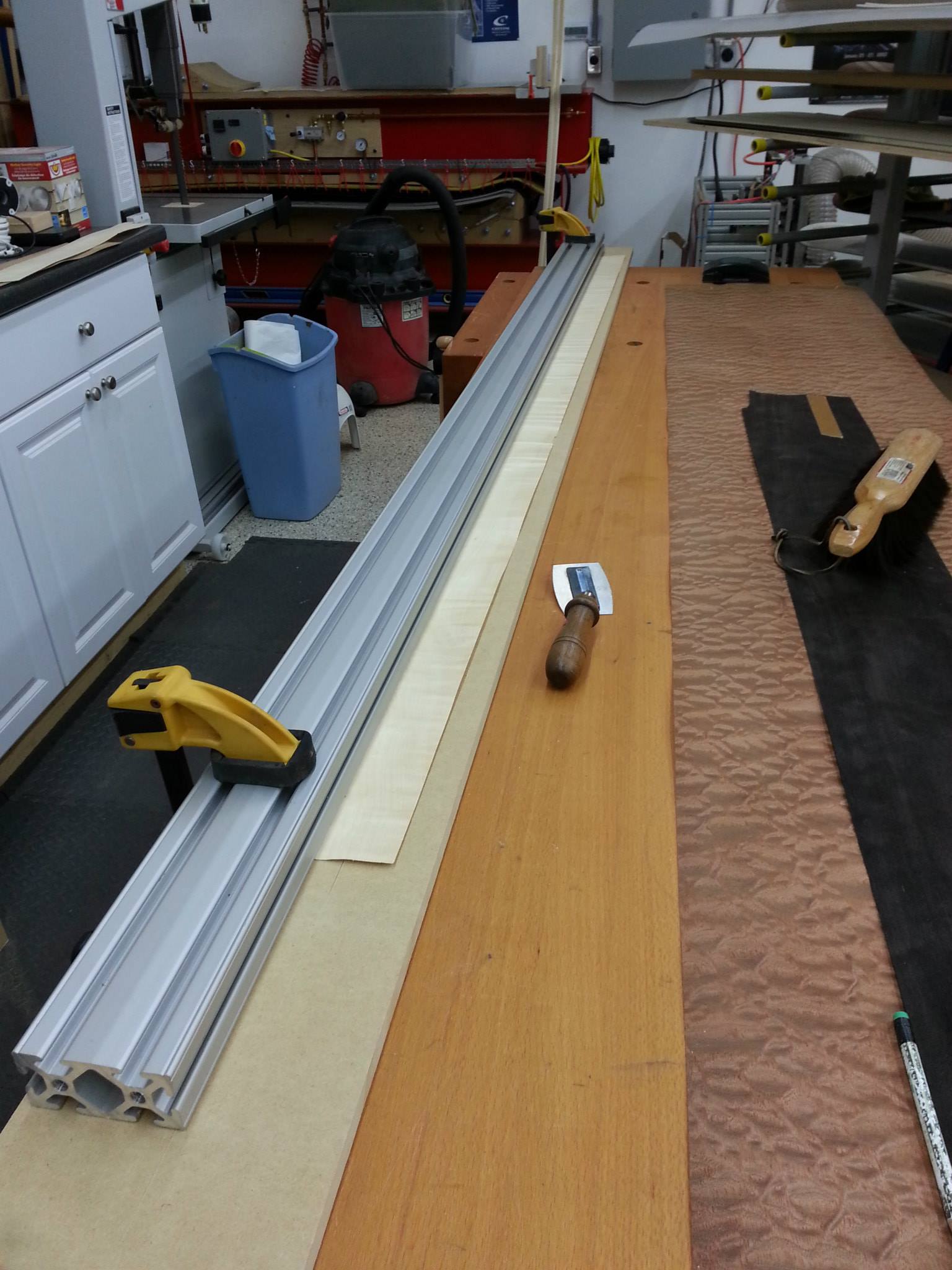

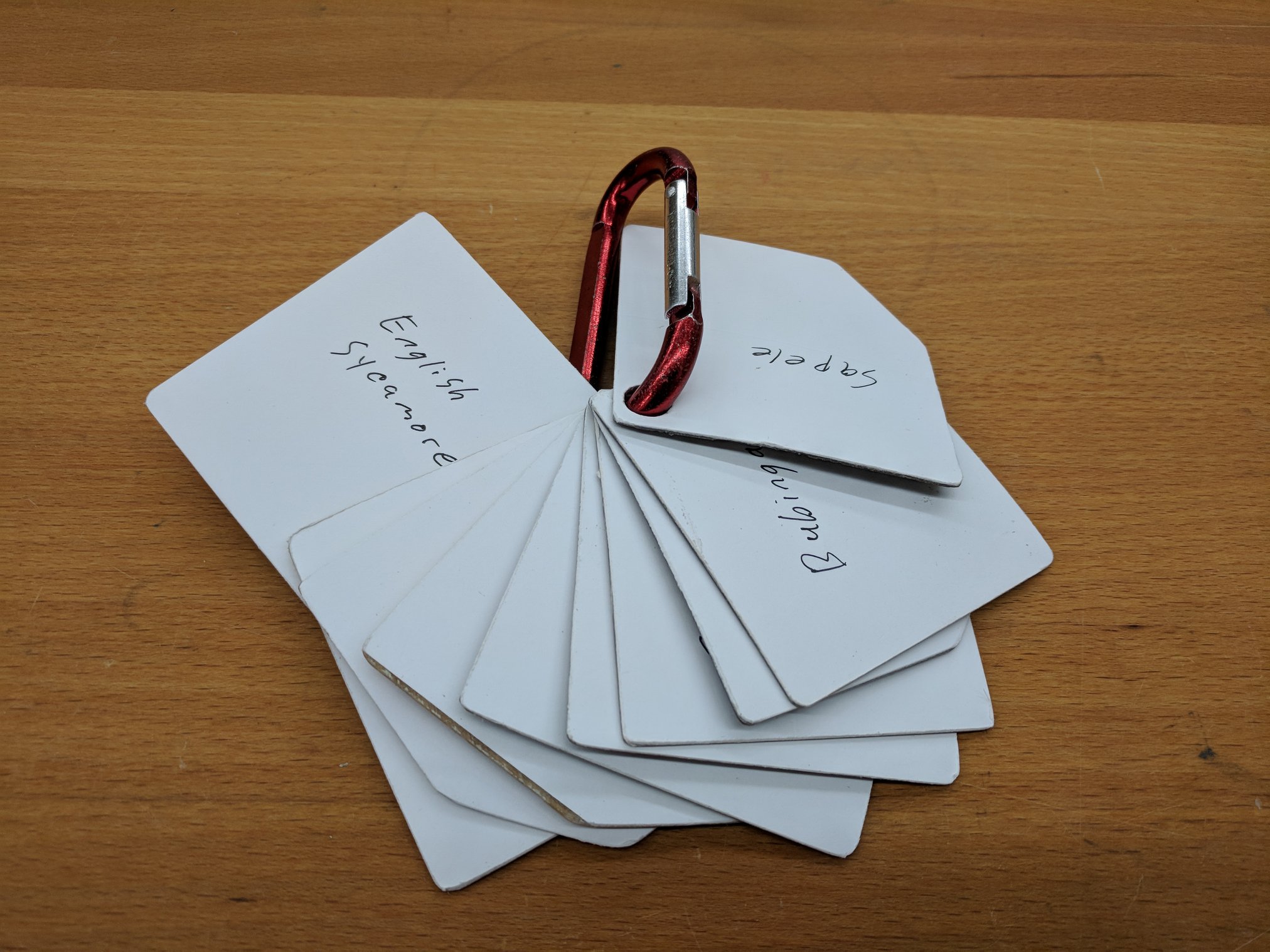

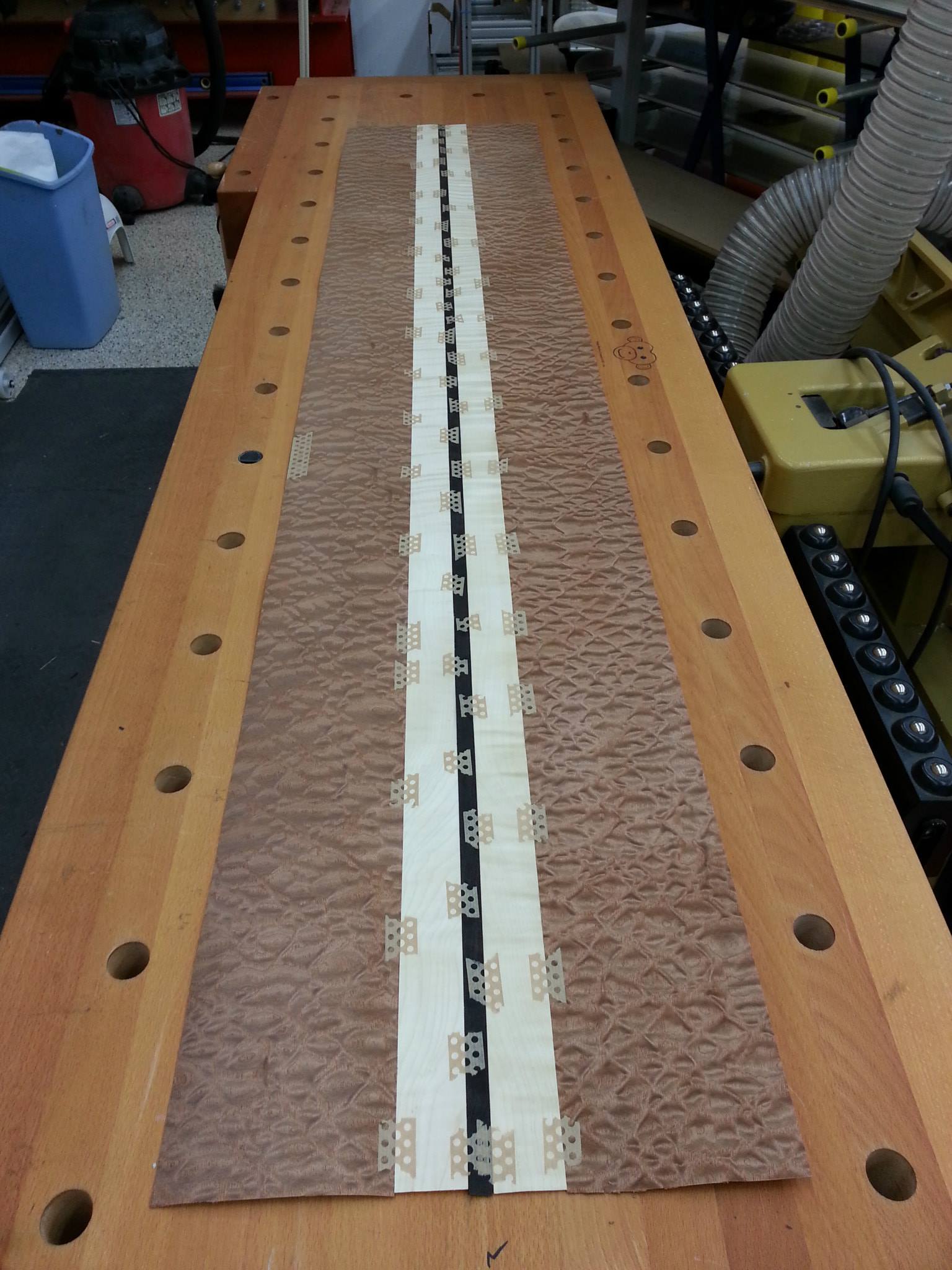

Completed board from Winter 2018. Wood veneer topsheet with highly figured Bubinga, English Sycamore, and Ebony. 164cm. Veneer topsheet ready to go, bottom-up. Self-made veneer sample cards, using my epoxy and heated press to ensure I see how they will color when pressing a board. Veneer cards backed with white notecard stock, held on with Super77 spray glue. Example showing veneer cards against the raw veneer. Veneer top sheets for skis. Form for cutting curved veneer. Raw veneer for top sheets. Three veneers selected to become a top sheet. Veneer being cut with a long straight edge of aluminum extrusion and a classic veneer saw. Veneer cut and ready to be joined. Veneer temporarily taped on the top side with blue painters tape. Veneer being joined with classic paper tape. Veneer top sheet, joined and ready to go, bottom view. Top of veneer top sheet, joined and ready to go.
